Debugging Shaders

Debug Mode

In debug mode, Iris will display any shader compilation errors directly. Debug mode can be enabled by pressing ctrl+D and restarting the game.

Warning

The ‘Use no error context’ setting will prevent the game from loading on some AMD drivers if debug mode is enabled. If you recieve a GLFW error when trying to load the game after enabling debug mode, you can disable the setting by editing .minecraft/config/sodium-otions.json and setting the value of use_no_error_g_l_context to false.

Finding Compilation Errors

Iris does not have proper support for line numbers in error messages. Line numbers in error messages correspond to the patched version of your shader code, which will not necessarily line up with the line numbers in your original code, especially if you have made use of the #include directive. The patched shader output can be found in the .minecraft/patched_shaders. Here’s an example.

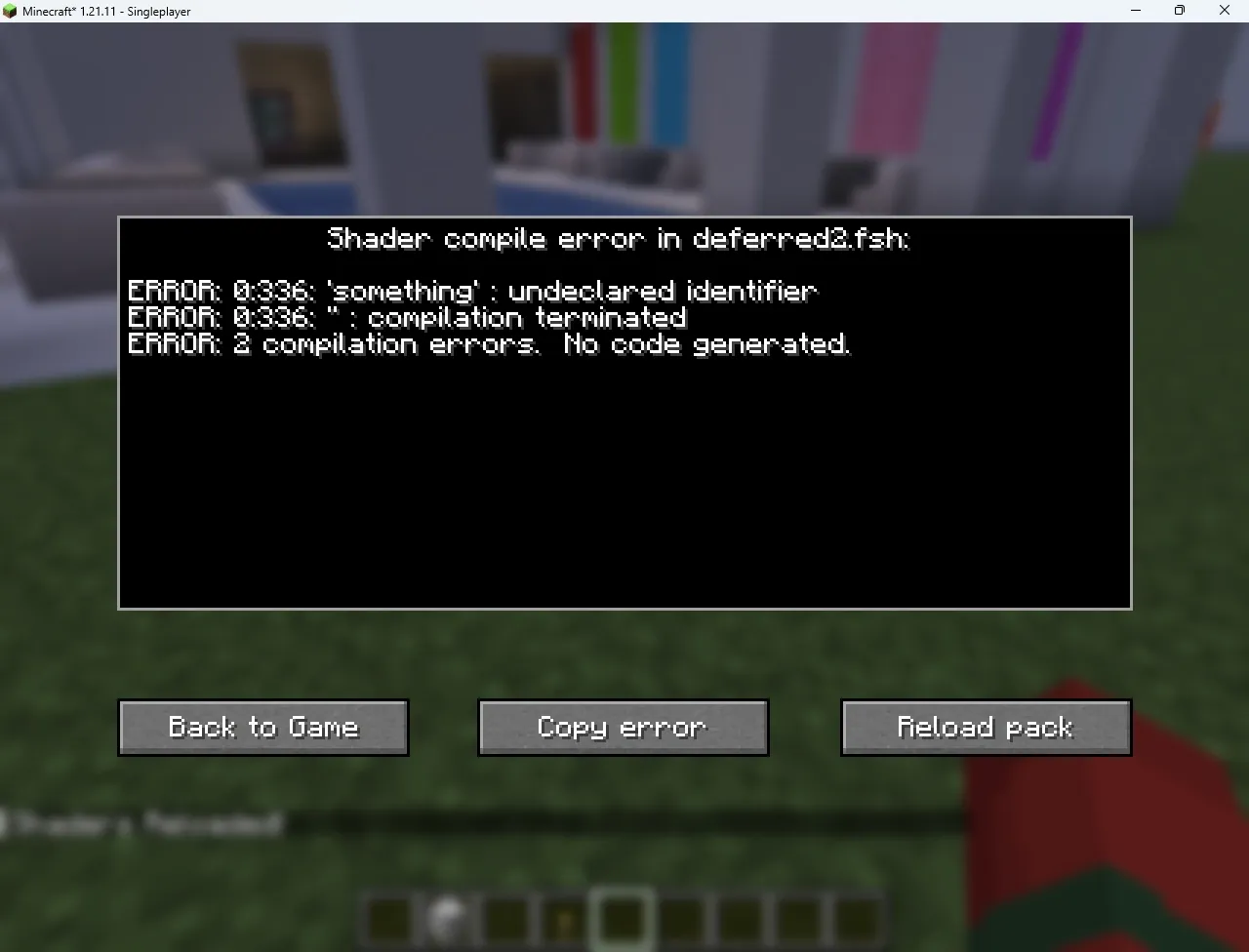

In this error message, we can see that the error occurs on line 336 of deferred2.fsh.

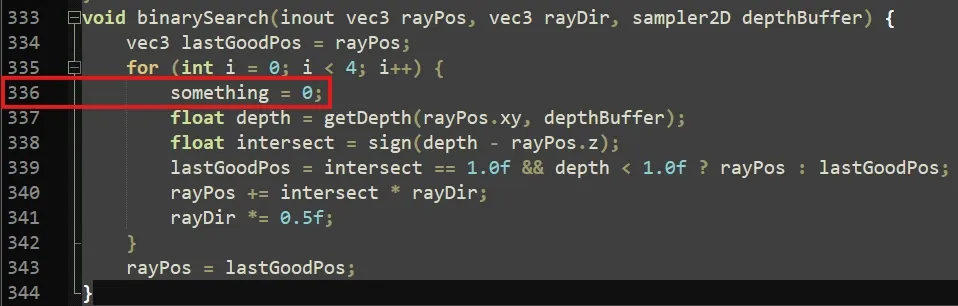

Opening .minecraft/patched_shaders/005_deferred2.fsh and navigating to line 336, we can see the line causing the error. Using the surrounding context, and perhaps the find+replace option in your text editor/IDE, you should be able to find the offending line.

Attaching a Debugger

Graphics debuggers are very useful when developing shaders, as they can be used to inspect the state of the GPU at a certain point in the pipeline, and gather detailed performance metrics.

RenderDoc

RenderDoc is an open source and cross platform graphics debugging tool. The method for hooking it into the game is operating system dependent.

Using the Mod

The GFX-Debuggers mod can be used to inject RenderDoc into the game on Windows. Simply select RenderDoc in the popup that appears when the game launches, and within RenderDoc, select File>Attach to Running Instance and select the game. It will likely appear as javaw.

Tip

If the mod isn’t available for your version of Minecraft, try using the latest version anyway.

Without the Mod (Windows)

On Windows, if the mod doesn’t work for you for some reason (or you are not using Fabric), you can use process injection to hook into the game. Navigate to Tools>Settings and enable Enable process injection (restart required), then restart the application.

You can then select File>Inject into Process. Start the game, quickly search for java in the list, and press Refresh. Select the game, and press Inject.

Warning

Process injection must happen before Minecraft initialises OpenGL. You need to be quick!

Without the Mod (Linux)

On Linux, the game must be made to initialise RenderDoc by itself. This can be done by setting the LD_PRELOAD environment variable to the path to librenderdoc.so. This can commonly be found at /usr/lib64/renderdoc/librenderdoc.so, but you can find the exact path with the below command.

Nsight

Nsight is an NVIDIA exclusive graphics debugger. It can provide much more detailed performance statistics.

The GFX-Debuggers mod can be used to inject Nsight into the game.

Alternatively, you can launch your launcher of choice from within Nsight by pointing it to the launcher executable, and it should automatically hook into Minecraft.
